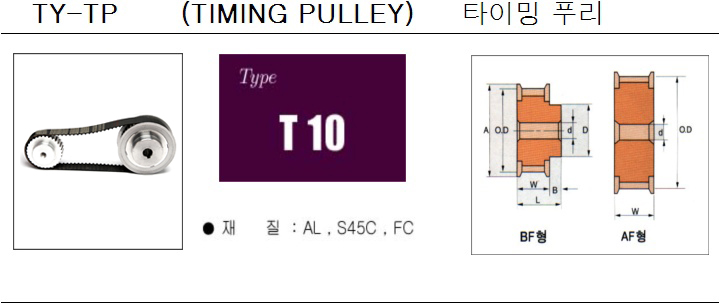

TY-TP-T10
치 형상 P.D O.D A B D d 벨트폭(20) 벨트폭(30) 벨트폭(40)
수 　 　 　 　 　 　 min max 호칭번호 L W 호칭번호 L W 호칭번호 L W
12 A.B(F) 38.20 36.35 43 15 25 8 18 12T10-20 42 27 12T10-30 52 37 12T10-40 62 47
13 A.B(F) 41.38 39.50 47 15 25 10 20 13T10-20 42 27 13T10-30 52 37 13T10-40 62 47
14 A.B(F) 44.56 42.70 50 15 30 10 20 14T10-20 42 27 14T10-30 52 37 14T10-40 62 47
15 A.B(F) 47.75 45.90 53 15 32 12 22 15T10-20 42 27 15T10-30 52 37 15T10-40 62 47
16 A.B(F) 50.93 49.05 56 15 34 12 22 16T10-20 42 27 16T10-30 52 37 16T10-40 62 47
17 A.B(F) 54.11 52.25 59 15 35 12 22 17T10-20 42 27 17T10-30 52 37 17T10-40 62 47
18 A.B(F) 57.30 55.45 62 15 36 12 24 18T10-20 42 27 18T10-30 52 37 18T10-40 62 47
19 A.B(F) 60.48 58.60 66 15 38 12 24 19T10-20 42 27 19T10-30 52 37 19T10-40 62 47
20 A.B(F) 63.66 61.80 69 15 40 12 26 20T10-20 42 27 20T10-30 52 37 20T10-40 62 47
21 A.B(F) 66.85 65.00 72 15 42 12 26 21T10-20 42 27 21T10-30 52 37 21T10-40 62 47
22 A.B(F) 70.03 68.15 75 15 44 12 28 22T10-20 42 27 22T10-30 52 37 22T10-40 62 47
23 A.B(F) 73.21 71.35 78 15 44 12 28 23T10-20 42 27 23T10-30 52 37 23T10-40 62 47
24 A.B(F) 76.39 74.55 82 15 44 12 28 24T10-20 42 27 24T10-30 52 37 24T10-40 62 47
25 A.B(F) 79.58 77.70 85 15 44 12 28 25T10-20 42 27 25T10-30 52 37 25T10-40 62 47
26 A.B(F) 82.79 80.90 88 15 44 12 28 26T10-20 42 27 26T10-30 52 37 26T10-40 62 47
27 A.B(F) 85.94 84.10 91 15 50 12 30 27T10-20 42 27 27T10-30 52 37 27T10-40 62 47
28 A.B(F) 89.13 87.25 94 15 52 12 30 28T10-20 42 27 28T10-30 52 37 28T10-40 62 47
29 A.B(F) 92.31 90.45 97 15 50 12 30 29T10-20 42 27 29T10-30 52 37 29T10-40 62 47
30 A.B(F) 95.49 93.65 101 15 50 12 30 30T10-20 42 27 30T10-30 52 37 30T10-40 62 47
32 A.B(F) 101.86 100.00 - 15 50 16 30 32T10-20 42 27 32T10-30 52 37 32T10-40 62 47
34 A.B(F) 108.23 106.40 - 15 56 16 32 34T10-20 42 27 34T10-30 52 37 34T10-40 62 47
35 A.B(F) 111.41 109.55 - 15 56 16 32 35T10-20 42 27 35T10-30 52 37 35T10-40 62 47
36 A.B(F) 114.59 112.75 - 15 60 16 32 36T10-20 42 27 36T10-30 52 37 36T10-40 62 47
38 A.B(F) 120.96 119.10 - 15 60 16 34 38T10-20 42 27 38T10-30 52 37 38T10-40 62 47
40 A.B(F) 127.32 125.45 - 15 60 16 34 40T10-20 42 27 40T10-30 52 37 40T10-40 62 47
42 A.W 133.69 131.85 - 15 65 16 34 42T10-20 42 27 42T10-30 52 37 42T10-40 62 47
44 A.W 140.06 138.20 - 15 65 16 34 44T10-20 42 27 44T10-30 52 37 44T10-40 62 47
45 A.W 143.24 141.40 - 15 65 16 34 45T10-20 42 27 45T10-30 52 37 45T10-40 62 47
46 A.W 146.42 144.55 - 15 65 16 34 46T10-20 42 27 46T10-30 52 37 46T10-40 62 47
48 A.W 152.79 150.95 - 15 65 16 34 48T10-20 42 27 48T10-30 52 37 48T10-40 62 47
50 A.W 159.15 157.30 - 15 65 16 34 50T10-20 42 27 50T10-30 52 37 50T10-40 62 47
60 A.W 190.99 189.30 - 15 65 16 34 60T10-20 42 27 60T10-30 52 37 60T10-40 62 47
72 A.W 229.18 227.30 - 15 65 16 34 72T10-20 42 27 72T10-30 52 37 72T10-40 62 47
84 A.W 267.38 265.30 - 15 65 16 34 84T10-20 42 27 84T10-30 52 37 84T10-40 62 47
96 A.W 305.58 303.70 - 15 65 20 40 96T10-20 42 27 96T10-30 52 37 96T10-40 62 47
120 A.W 381.97 380.09 - 15 65 20 40 120T10-20 42 27 120T10-30 52 37 120T10-40 62 47
