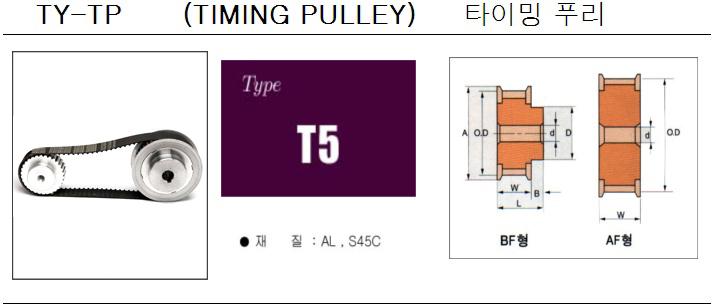

TY-TP-T5
치 형상 P.D O.D A B D d 벨트폭(10) 벨트폭(38.1) 벨트폭(50.8)
수 　 　 　 　 　 　 min max 호칭번호 L W 호칭번호 L W 호칭번호 L W
12 A.B(F) 19.10 18.25 23 12 12 6 7 12T5-10 28 16 12T5-15 33 21 12T5-20 38 26
13 A.B(F) 20.69 19.85 25 12 15 6 7 13T5-10 28 16 13T5-15 33 21 13T5-20 38 26
14 A.B(F) 22.28 21.45 26 12 15 6 7 14T5-10 28 16 14T5-15 33 21 14T5-20 38 26
15 A.B(F) 23.87 23.05 28 12 16 6 10 15T5-10 28 16 15T5-15 33 21 15T5-20 38 26
16 A.B(F) 25.46 24.60 30 12 16 6 10 16T5-10 28 16 16T5-15 33 21 16T5-20 38 26
17 A.B(F) 27.06 26.20 31 12 19 6 10 17T5-10 28 16 17T5-15 33 21 17T5-20 38 26
18 A.B(F) 28.65 27.80 33 12 20 6 10 18T5-10 28 16 18T5-15 33 21 18T5-20 38 26
19 A.B(F) 30.24 29.40 34 12 22 6 10 19T5-10 28 16 19T5-15 33 21 19T5-20 38 26
20 A.B(F) 31.83 31.00 36 12 24 6 10 20T5-10 28 16 20T5-15 33 21 20T5-20 38 26
21 A.B(F) 33.42 32.70 38 12 25 6 10 21T5-10 28 16 21T5-15 33 21 21T5-20 38 26
22 A.B(F) 35.01 34.25 39 12 27 6 10 22T5-10 28 16 22T5-15 33 21 22T5-20 38 26
23 A.B(F) 36.61 35.85 41 12 28 8 12 23T5-10 28 16 23T5-15 33 21 23T5-20 38 26
24 A.B(F) 38.02 37.40 42 12 30 8 12 24T5-10 28 16 24T5-15 33 21 24T5-20 38 26
25 A.B(F) 39.79 39.00 44 12 32 8 12 25T5-10 28 16 25T5-15 33 21 25T5-20 38 26
26 A.B(F) 41.38 40.60 46 12 33 8 12 26T5-10 28 16 26T5-15 33 21 26T5-20 38 26
27 A.B(F) 42.92 42.20 47 12 35 8 12 27T5-10 28 16 27T5-15 33 21 27T5-20 38 26
28 A.B(F) 44.56 43.75 49 12 35 8 12 28T5-10 28 16 28T5-15 33 21 28T5-20 38 26
29 A.B(F) 46.15 45.35 50 12 37 8 12 29T5-10 28 16 29T5-15 33 21 29T5-20 38 26
30 A.B(F) 47.75 46.95 52 12 39 8 12 30T5-10 28 16 30T5-15 33 21 30T5-20 38 26
32 A.B(F) 50.93 50.10 55 12 42 8 12 32T5-10 28 16 32T5-15 33 21 32T5-20 38 26
34 A.B(F) 54.11 53.25 58 12 45 8 12 34T5-10 28 16 34T5-15 33 21 34T5-20 38 26
35 A.B(F) 55.70 54.85 60 12 45 8 12 35T5-10 28 16 35T5-15 33 21 35T5-20 38 26
36 A.B(F) 57.30 56.45 61 12 45 8 12 36T5-10 28 16 36T5-15 33 21 36T5-20 38 26
38 A.B(F) 60.48 59.65 65 12 45 8 12 38T5-10 28 16 38T5-15 33 21 38T5-20 38 26
40 A.B(F) 63.66 62.85 68 12 45 8 12 40T5-10 28 16 40T5-15 33 21 40T5-20 38 26
42 A.W 66.85 66.00 - 12 50 10 15 42T5-10 28 16 42T5-15 33 21 42T5-20 38 26
44 A.W 70.03 69.20 - 12 50 10 15 44T5-10 28 16 44T5-15 33 21 44T5-20 38 26
45 A.W 71.62 70.80 - 12 50 10 15 45T5-10 28 16 45T5-15 33 21 45T5-20 38 26
46 A.W 73.21 72.40 - 12 50 10 15 46T5-10 28 16 46T5-15 33 21 46T5-20 38 26
48 A.W 76.39 75.55 - 12 50 10 15 48T5-10 28 16 48T5-15 33 21 48T5-20 38 26
50 A.W 79.58 78.75 - 12 50 10 15 50T5-10 28 16 50T5-15 33 21 50T5-20 38 26
60 A.W 95.49 94.65 - 12 60 15 20 60T5-10 28 16 60T5-15 33 21 60T5-20 38 26
72 A.W 114.59 113.75 - 12 60 15 20 72T5-10 28 16 72T5-15 33 21 72T5-20 38 26
84 A.W 133.69 132.85 - 12 60 15 20 84T5-10 28 16 84T5-15 33 21 84T5-20 38 26
96 A.W 152.79 152.00 - 12 70 15 20 96T5-10 28 16 96T5-15 33 21 96T5-20 38 26
120 A.W 190.99 190.15 - 12 70 15 20 120T5-10 28 16 120T5-15 33 21 120T5-20 38 26
