MXL XL L H XH XXH T5 T10 T20 P3M P5M P8M P14M P20M S4.5M S8M S14M

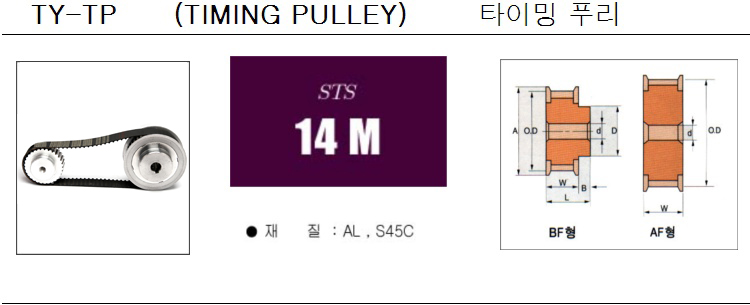

TY-TP-S.T.S-14M
치 형상 P.D O.D A B D d 벨트폭(40) 벨트폭(60) 벨트폭(80)
수 　 　 　 　 　 　 mim max 호칭번호 L W 호칭번호 L W 호칭번호 L W
12 A.B(F) 53.48 50.69 59 18 35 15 25 12STS14M-40 70 52 12STS14M-60 90 72 12STS14M-80 110 92
13 A.B(F) 57.93 55.14 63 18 40 15 28 13STS14M-40 70 52 13STS14M-60 90 72 13STS14M-80 110 92
14 A.B(F) 62.39 59.60 68 18 45 15 30 14STS14M-40 70 52 14STS14M-60 90 72 14STS14M-80 110 92
15 A.B(F) 66.85 64.06 72 18 50 15 32 15STS14M-40 70 52 15STS14M-60 90 72 15STS14M-80 110 92
16 A.B(F) 71.30 68.51 77 18 55 15 35 16STS14M-40 70 52 16STS14M-60 90 72 16STS14M-80 110 92
17 A.B(F) 75.76 72.97 81 18 60 15 38 17STS14M-40 70 52 17STS14M-60 90 72 17STS14M-80 110 92
18 A.B(F) 80.21 77.42 85 18 65 16 40 18STS14M-40 70 52 18STS14M-60 90 72 18STS14M-80 110 92
19 A.B(F) 84.67 81.88 90 18 65 16 40 19STS14M-40 70 52 19STS14M-60 90 72 19STS14M-80 110 92
20 A.B(F) 89.13 86.34 94 18 70 18 45 20STS14M-40 70 52 20STS14M-60 90 72 20STS14M-80 110 92
21 A.B(F) 93.58 90.79 99 18 70 18 45 21STS14M-40 70 52 21STS14M-60 90 72 21STS14M-80 110 92
22 A.B(F) 98.04 95.25 103 18 70 18 45 22STS14M-40 70 52 22STS14M-60 90 72 22STS14M-80 110 92
23 A.B(F) 102.50 99.71 108 18 70 18 45 23STS14M-40 70 52 23STS14M-60 90 72 23STS14M-80 110 92
24 A.B(F) 106.95 104.16 112 18 70 18 45 24STS14M-40 70 52 24STS14M-60 90 72 24STS14M-80 110 92
25 A.B(F) 114.41 108.62 117 18 75 20 50 25STS14M-40 70 52 25STS14M-60 90 72 25STS14M-80 110 92
26 A.W 115.86 113.07 - 18 75 20 50 26STS14M-40 70 52 26STS14M-60 90 72 26STS14M-80 110 92
27 A.W 120.32 117.53 - 18 75 20 50 27STS14M-40 70 52 27STS14M-60 90 72 27STS14M-80 110 92
28 A.W 124.78 121.98 - 18 75 20 50 28STS14M-40 70 52 28STS14M-60 90 72 28STS14M-80 110 92
29 A.W 129.23 126.44 - 18 75 20 50 29STS14M-40 70 52 29STS14M-60 90 72 29STS14M-80 110 92
30 A.W 133.69 130.90 - 18 80 20 55 30STS14M-40 70 52 30STS14M-60 90 72 30STS14M-80 110 92
32 A.W 142.60 139.81 - 20 80 20 55 32STS14M-40 72 52 32STS14M-60 92 72 32STS14M-80 112 92
34 A.W 151.52 148.72 - 20 80 20 55 34STS14M-40 72 52 34STS14M-60 92 72 34STS14M-80 112 92
35 A.W 155.97 153.18 - 20 80 20 55 35STS14M-40 72 52 35STS14M-60 92 72 35STS14M-80 112 92
36 A.W 160.43 157.63 - 20 80 20 55 36STS14M-40 72 52 36STS14M-60 92 72 36STS14M-80 112 92
38 A.W 169.34 166.55 - 20 80 20 55 38STS14M-40 72 52 38STS14M-60 92 72 38STS14M-80 112 92
40 A.W 178.25 175.46 - 20 80 20 55 40STS14M-40 72 52 40STS14M-60 92 72 40STS14M-80 112 92
42 A.W 187.17 184.37 - 20 90 22 60 42STS14M-40 72 52 42STS14M-60 92 72 42STS14M-80 112 92
44 A.W 196.08 193.28 - 20 90 22 60 44STS14M-40 72 52 44STS14M-60 92 72 44STS14M-80 112 92
45 A.W 200.54 197.74 - 20 90 22 60 45STS14M-40 72 52 45STS14M-60 92 72 45STS14M-80 112 92
46 A.W 204.89 202.20 - 20 100 25 70 46STS14M-40 72 52 46STS14M-60 92 72 46STS14M-80 112 92
48 A.W 213.90 211.11 - 20 100 25 70 48STS14M-40 72 52 48STS14M-60 92 72 48STS14M-80 112 92
50 A.W 222.82 220.02 - 20 100 25 70 50STS14M-40 72 52 50STS14M-60 92 72 50STS14M-80 112 92
60 A.W 267.38 264.59 - 20 120 25 80 60STS14M-40 72 52 60STS14M-60 92 72 60STS14M-80 112 92
72 A.W 320.86 318.06 - 20 120 25 80 72STS14M-40 72 52 72STS14M-60 92 72 72STS14M-80 112 92
84 A.W 374.33 371.54 - 20 120 25 80 84STS14M-40 72 52 84STS14M-60 92 72 84STS14M-80 112 92
96 A.W 427.81 425.01 - 20 150 25 100 96STS14M-40 72 52 96STS14M-60 92 72 96STS14M-80 112 92
120 A.W 534.76 531.97 - 20 150 25 100 120STS14M-40 72 52 120STS14M-60 92 72 120STS14M-80 112 92
