MXL XL L H XH XXH T5 T10 T20 P3M P5M P8M P14M P20M S4.5M S8M S14M

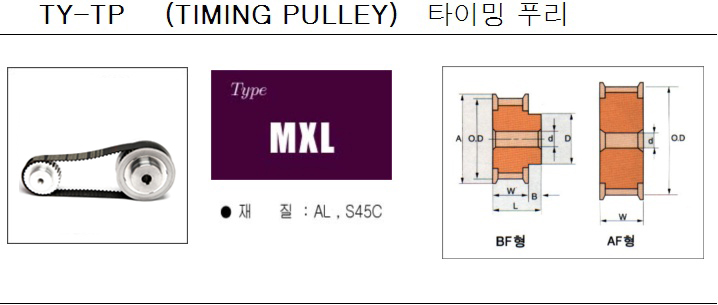

TY-TP-MXL (2.03)
치 형상 P.D O.D A B D d 벨트폭(6.35) 벨트폭(9.525) 벨트폭(12.7)
수 　 　 　 　 　 　 min max 호칭번호 L W 호칭번호 L W 호칭번호 L W
12 A.B(F) 7.76 7.25 12 10 7 0 3 12MXL025 20 10 12MXL037 23.5 13.5 12MXL050 26.5 16.5
13 A.B(F) 8.41 7.90 13 10 7 0 3 13MXL025 20 10 13MXL037 23.5 13.5 13MXL050 26.5 16.5
14 A.B(F) 9.06 8.55 14 10 8 0 3 14MXL025 20 10 14MXL037 23.5 13.5 14MXL050 26.5 16.5
15 A.B(F) 9.70 9.91 14 10 9 0 3 15MXL025 20 10 15MXL037 23.5 13.5 15MXL050 26.5 16.5
16 A.B(F) 10.35 9.84 15 10 9 0 3 16MXL025 20 10 16MXL037 23.5 13.5 16MXL050 26.5 16.5
17 A.B(F) 10.99 10.48 15 10 10 0 3 17MXL025 20 10 17MXL037 23.5 13.5 17MXL050 26.5 16.5
18 A.B(F) 11.64 11.14 16 10 11 0 5 18MXL025 20 10 18MXL037 23.5 13.5 18MXL050 26.5 16.5
19 A.B(F) 12.29 11.78 17 10 11 0 5 19MXL025 20 10 19MXL037 23.5 13.5 19MXL050 26.5 16.5
20 A.B(F) 12.94 12.43 17 10 12 0 5 20MXL025 20 10 20MXL037 23.5 13.5 20MXL050 26.5 16.5
21 A.B(F) 13.58 13.07 18 10 12 0 5 21MXL025 20 10 21MXL037 23.5 13.5 21MXL050 26.5 16.5
22 A.B(F) 14.23 13.72 19 10 13 0 5 22MXL025 20 10 22MXL037 23.5 13.5 22MXL050 26.5 16.5
23 A.B(F) 14.88 14.37 19 10 14 0 5 23MXL025 20 10 23MXL037 23.5 13.5 23MXL050 26.5 16.5
24 A.B(F) 15.52 15.02 20 10 14 0 5 24MXL025 20 10 24MXL037 23.5 13.5 24MXL050 26.5 16.5
25 A.B(F) 16.17 15.67 21 10 15 0 5 25MXL025 20 10 25MXL037 23.5 13.5 25MXL050 26.5 16.5
26 A.B(F) 16.82 16.31 21 10 16 0 5 26MXL025 20 10 26MXL037 23.5 13.5 26MXL050 26.5 16.5
27 A.B(F) 17.46 16.95 22 10 16 0 5 27MXL025 20 10 27MXL037 23.5 13.5 27MXL050 26.5 16.5
28 A.B(F) 18.11 17.61 23 10 17 0 5 28MXL025 20 10 28MXL037 23.5 13.5 28MXL050 26.5 16.5
29 A.B(F) 18.76 18.25 23 10 17 0 5 29MXL025 20 10 29MXL037 23.5 13.5 29MXL050 26.5 16.5
30 A.B(F) 19.40 18.90 24 10 18 6 10 30MXL025 20 10 30MXL037 23.5 13.5 30MXL050 26.5 16.5
32 A.B(F) 20.70 20.19 25 10 18 6 10 32MXL025 20 10 32MXL037 23.5 13.5 32MXL050 26.5 16.5
34 A.B(F) 21.99 21.48 26 10 20 6 12 34MXL025 20 10 34MXL037 23.5 13.5 34MXL050 26.5 16.5
35 A.B(F) 22.64 22.13 27 10 20 6 12 35MXL025 20 10 35MXL037 23.5 13.5 35MXL050 26.5 16.5
36 A.B(F) 23.20 22.78 28 10 20 6 12 36MXL025 20 10 36MXL037 23.5 13.5 36MXL050 26.5 16.5
38 A.B(F) 24.58 24.07 29 10 20 6 12 38MXL025 20 10 38MXL037 23.5 13.5 38MXL050 26.5 16.5
40 A.B(F) 26.87 25.37 30 10 20 8 12 40MXL025 20 10 40MXL037 23.5 13.5 40MXL050 26.5 16.5
42 A.B(F) 27.17 26.66 - 10 24 8 14 42MXL025 20 10 42MXL037 23.5 13.5 42MXL050 26.5 16.5
44 A.B(F) 28.46 27.95 - 10 25 8 15 44MXL025 20 10 44MXL037 23.5 13.5 44MXL050 26.5 16.5
45 A.B(F) 29.11 28.60 - 10 25 8 15 45MXL025 20 10 45MXL037 23.5 13.5 45MXL050 26.5 16.5
46 A.B(F) 29.75 29.24 - 10 27 8 17 46MXL025 20 10 46MXL037 23.5 13.5 46MXL050 26.5 16.5
48 A.B(F) 31.05 30.54 - 10 27 8 17 48MXL025 20 10 48MXL037 23.5 13.5 48MXL050 26.5 16.5
50 A.B(F) 32.34 31.84 - 10 28 10 18 50MXL025 20 10 50MXL037 23.5 13.5 50MXL050 26.5 16.5
60 A.B(F) 38.81 38.30 - 10 35 10 22 60MXL025 20 10 60MXL037 23.5 13.5 60MXL050 26.5 16.5
72 A.B(F) 46.57 46.06 - 10 40 12 25 72MXL025 20 10 72MXL037 23.5 13.5 72MXL050 26.5 16.5
84 A.B(F) 54.44 53.82 - 10 48 12 30 84MXL025 20 10 84MXL037 23.5 13.5 84MXL050 26.5 16.5
96 A.B(F) 62.09 61.58 - 10 55 15 35 96MXL025 20 10 96MXL037 23.5 13.5 96MXL050 26.5 16.5
120 A.B(F) 77.62 77.11 - 10 55 15 35 120MXL025 20 10 120MXL037 23.5 13.5 120MXL050 26.5 16.5
