MXL XL L H XH XXH T5 T10 T20 P3M P5M P8M P14M P20M S4.5M S8M S14M

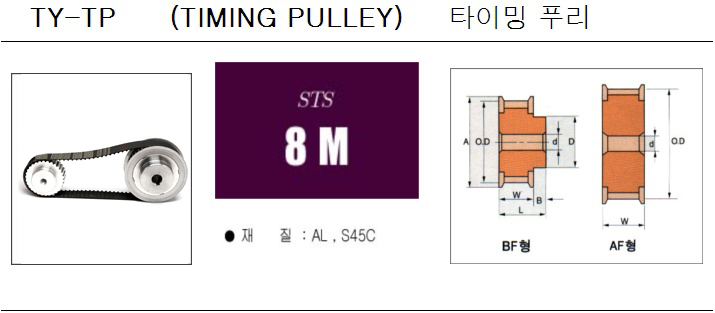

TY-TP-S.T.S-8M
치 형상 P.D O.D A B D d 벨트폭(15) 벨트폭(25) 벨트폭(40)
수 　 　 　 　 　 　 min max 호칭번호 L W 호칭번호 L W 호칭번호 L W
12 A.B(F) 30.56 29.19 35 14 19 7 10 12STS8M-15 36 22 12STS8M-25 46 32 12STS8M-40 61 47
13 A.B(F) 33.10 31.73 38 14 21 8 12 13STS8M-15 36 22 13STS8M-25 46 32 13STS8M-40 61 47
14 A.B(F) 35.65 34.28 40 14 24 10 14 14STS8M-15 36 22 14STS8M-25 46 32 14STS8M-40 61 47
15 A.B(F) 38.20 36.83 43 14 26 10 16 15STS8M-15 36 22 15STS8M-25 46 32 15STS8M-40 61 47
16 A.B(F) 40.74 39.37 45 14 29 12 19 16STS8M-15 36 22 16STS8M-25 46 32 16STS8M-40 61 47
17 A.B(F) 43.29 41.92 48 14 29 12 19 17STS8M-15 36 22 17STS8M-25 46 32 17STS8M-40 61 47
18 A.B(F) 45.84 44.46 50 14 29 12 19 18STS8M-15 36 22 18STS8M-25 46 32 18STS8M-40 61 47
19 A.B(F) 48.38 47.01 53 14 34 12 23 19STS8M-15 36 22 19STS8M-25 46 32 19STS8M-40 61 47
20 A.B(F) 50.93 49.56 56 14 35 12 23 20STS8M-15 36 22 20STS8M-25 46 32 20STS8M-40 61 47
21 A.B(F) 53.48 52.10 58 14 35 12 23 21STS8M-15 36 22 21STS8M-25 46 32 21STS8M-40 61 47
22 A.B(F) 56.02 54.65 61 14 35 12 23 22STS8M-15 36 22 22STS8M-25 46 32 22STS8M-40 61 47
23 A.B(F) 58.57 57.20 63 14 40 12 25 23STS8M-15 36 22 23STS8M-25 46 32 23STS8M-40 61 47
24 A.B(F) 61.12 59.74 66 14 40 12 25 24STS8M-15 36 22 24STS8M-25 46 32 24STS8M-40 61 47
25 A.B(F) 63.66 62.29 68 14 40 12 30 25STS8M-15 36 22 25STS8M-25 46 32 25STS8M-40 61 47
26 A.B(F) 66.21 64.84 71 14 40 12 30 26STS8M-15 36 22 26STS8M-25 46 32 26STS8M-40 61 47
27 A.B(F) 68.75 67.38 73 14 50 12 30 27STS8M-15 36 22 27STS8M-25 46 32 27STS8M-40 61 47
28 A.B(F) 71.30 69.93 76 14 50 12 30 28STS8M-15 36 22 28STS8M-25 46 32 28STS8M-40 61 47
29 A.B(F) 73.85 72.48 78 14 50 12 30 29STS8M-15 36 22 29STS8M-25 46 32 29STS8M-40 61 47
30 A.B(F) 76.39 75.02 81 14 50 12 30 30STS8M-15 36 22 30STS8M-25 46 32 30STS8M-40 61 47
32 A.W 81.49 80.12 - 14 65 15 42 32STS8M-15 36 22 32STS8M-25 46 32 32STS8M-40 61 47
34 A.W 86.58 85.21 - 14 65 15 42 34STS8M-15 36 22 34STS8M-25 46 32 34STS8M-40 61 47
35 A.W 89.13 87.75 - 14 65 15 42 35STS8M-15 36 22 35STS8M-25 46 32 35STS8M-40 61 47
36 A.W 91.67 90.30 - 14 65 15 42 36STS8M-15 36 22 36STS8M-25 46 32 36STS8M-40 61 47
38 A.W 96.77 95.39 - 14 65 15 42 38STS8M-15 36 22 38STS8M-25 46 32 38STS8M-40 61 47
40 A.W 101.86 100.49 - 14 65 15 42 40STS8M-15 36 22 40STS8M-25 46 32 40STS8M-40 61 47
42 A.W 106.95 105.58 - 16 70 18 48 42STS8M-15 38 22 42STS8M-25 48 32 42STS8M-40 63 47
44 A.W 112.05 110.67 - 16 70 18 48 44STS8M-15 38 22 44STS8M-25 48 32 44STS8M-40 63 47
45 A.W 114.59 113.22 - 16 70 18 48 45STS8M-15 38 22 45STS8M-25 48 32 45STS8M-40 63 47
46 A.W 177.14 115.77 - 16 70 18 48 46STS8M-15 38 22 46STS8M-25 48 32 46STS8M-40 63 47
48 A.W 122.23 120.86 - 16 70 18 48 48STS8M-15 38 22 48STS8M-25 48 32 48STS8M-40 63 47
50 A.W 127.32 125.95 - 16 70 18 48 50STS8M-15 38 22 50STS8M-25 48 32 50STS8M-40 63 47
60 A.W 152.79 151.42 - 16 75 20 50 60STS8M-15 38 22 60STS8M-25 48 32 60STS8M-40 63 47
72 A.W 183.35 181.97 - 16 75 20 50 72STS8M-15 38 22 72STS8M-25 48 32 72STS8M-40 63 47
84 A.W 213.90 212.53 - 16 75 20 50 84STS8M-15 38 22 84STS8M-25 48 32 84STS8M-40 63 47
96 A.W 244.46 243.09 - 16 80 80 55 96STS8M-15 38 22 96STS8M-25 48 32 96STS8M-40 63 47
120 A.W 305.58 304.21 - 16 80 80 55 120STS8M-15 38 22 120STS8M-25 48 32 120STS8M-40 63 47
