MXL XL L H XH XXH T5 T10 T20 P3M P5M P8M P14M P20M S4.5M S8M S14M

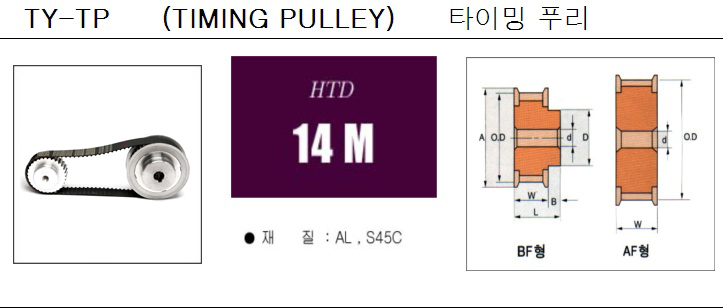

TY-TP-H.T.D-14M
치 형상 P.D O.D A B D d 벨트폭(30) 벨트폭(50) 벨트폭(80)
수 　 　 　 　 　 　 min max 호칭번호 L W 호칭번호 L W 호칭번호 L W
12 A.B(F) 53.48 50.85 59 18 35 15 25 12HTD14M-30 60 42 12HTD14M-50 80 62 12HTD14M-80 110 92
13 A.B(F) 57.93 55.30 63 18 40 15 28 13HTD14M-30 60 42 13HTD14M-50 80 62 13HTD14M-80 110 92
14 A.B(F) 62.39 59.76 68 18 45 15 30 14HTD14M-30 60 42 14HTD14M-50 80 62 14HTD14M-80 110 92
15 A.B(F) 66.85 64.21 72 18 50 15 32 15HTD14M-30 60 42 15HTD14M-50 80 62 15HTD14M-80 110 92
16 A.B(F) 71.30 68.67 77 18 55 15 35 16HTD14M-30 60 42 16HTD14M-50 80 62 16HTD14M-80 110 92
17 A.B(F) 75.76 73.12 81 18 60 15 38 17HTD14M-30 60 42 17HTD14M-50 80 62 17HTD14M-80 110 92
18 A.B(F) 80.21 77.58 86 18 65 16 40 18HTD14M-30 60 42 18HTD14M-50 80 62 18HTD14M-80 110 92
19 A.B(F) 84.67 82.03 90 18 65 16 40 19HTD14M-30 60 42 19HTD14M-50 80 62 19HTD14M-80 110 92
20 A.B(F) 89.13 86.48 94 18 70 18 45 20HTD14M-30 60 42 20HTD14M-50 80 62 20HTD14M-80 110 92
21 A.B(F) 93.58 90.94 99 18 70 18 45 21HTD14M-30 60 42 21HTD14M-50 80 62 21HTD14M-80 110 92
22 A.B(F) 98.04 95.39 103 18 70 18 45 22HTD14M-30 60 42 22HTD14M-50 80 62 22HTD14M-80 110 92
23 A.B(F) 102.50 99.84 108 18 70 18 45 23HTD14M-30 60 42 23HTD14M-50 80 62 23HTD14M-80 110 92
24 A.B(F) 106.95 104.30 112 18 70 18 45 24HTD14M-30 60 42 24HTD14M-50 80 62 24HTD14M-80 110 92
25 A.B(F) 111.41 108.76 117 18 75 20 50 25HTD14M-30 60 42 25HTD14M-50 80 62 25HTD14M-80 110 92
26 A.W 115.86 113.21 - 18 75 20 50 26HTD14M-30 60 42 26HTD14M-50 80 62 26HTD14M-80 110 92
27 A.W 120.82 117.66 - 18 75 20 50 27HTD14M-30 60 42 27HTD14M-50 80 62 27HTD14M-80 110 92
28 A.W 124.78 122.12 - 18 75 20 50 28HTD14M-30 60 42 28HTD14M-50 80 62 28HTD14M-80 110 92
29 A.W 129.23 126.57 - 18 75 20 50 29HTD14M-30 60 42 29HTD14M-50 80 62 29HTD14M-80 110 92
30 A.W 133.69 130.99 - 18 80 20 55 30HTD14M-30 60 42 30HTD14M-50 80 62 30HTD14M-80 110 92
32 A.W 142.60 139.88 - 18 80 20 55 32HTD14M-30 62 42 32HTD14M-50 82 62 32HTD14M-80 110 92
34 A.W 152.52 148.79 - 20 80 20 55 34HTD14M-30 62 42 34HTD14M-50 82 62 34HTD14M-80 110 92
35 A.W 155.97 153.24 - 20 80 20 55 35HTD14M-30 62 42 35HTD14M-50 82 62 35HTD14M-80 110 92
36 A.W 160.43 157.68 - 20 80 20 55 36HTD14M-30 62 42 36HTD14M-50 82 62 36HTD14M-80 110 92
38 A.W 169.34 166.60 - 20 80 20 55 38HTD14M-30 62 42 38HTD14M-50 82 62 38HTD14M-80 110 92
40 A.W 178.25 175.49 - 20 80 20 55 40HTD14M-30 62 42 40HTD14M-50 82 62 40HTD14M-80 110 92
42 A.W 187.17 184.37 - 20 90 22 60 42HTD14M-30 62 42 42HTD14M-50 82 62 42HTD14M-80 110 92
44 A.W 196.08 193.28 - 20 90 22 60 44HTD14M-30 62 42 44HTD14M-50 82 62 44HTD14M-80 110 92
45 A.W 200.54 197.74 - 20 90 22 60 45HTD14M-30 62 42 45HTD14M-50 82 62 45HTD14M-80 110 92
46 A.W 204.89 202.20 - 20 ## 25 70 46HTD14M-30 62 42 46HTD14M-50 82 62 46HTD14M-80 110 92
48 A.W 213.90 211.11 - 20 ## 25 70 48HTD14M-30 62 42 48HTD14M-50 82 62 48HTD14M-80 110 92
50 A.W 222.82 220.02 - 20 ## 25 70 50HTD14M-30 62 42 50HTD14M-50 82 62 50HTD14M-80 110 92
60 A.W 267.38 264.59 - 20 ## 25 80 60HTD14M-30 62 42 60HTD14M-50 82 62 60HTD14M-80 110 92
72 A.W 320.86 318.06 - 20 ## 25 80 72HTD14M-30 62 42 72HTD14M-50 82 62 72HTD14M-80 110 92
84 A.W 374.33 371.54 - 20 ## 25 80 84HTD14M-30 62 42 84HTD14M-50 82 62 84HTD14M-80 110 92
96 A.W 724.81 425.01 - 20 ## 25 100 96HTD14M-30 62 42 96HTD14M-50 82 62 96HTD14M-80 110 92
## A.W 534.76 531.96 - 20 ## 25 100 120HTD14M-30 62 42 120HTD14M-50 82 62 120HTD14M-80 110 92
